Precast Lifting Anchor
A cast-in steel anchor designed as part of the lifting system to transfer a precast element's handling load through a compatible clutch and crane connection.
Choose lifting anchors as a complete lifting system: anchor type, safe working load, concrete strength at lifting, edge distance, lifting angle and clutch compatibility must all match the element.
A lifting anchor is cast into concrete and connects the element to a clutch, shackle or lifting system during handling. It is a safety-critical part, not a generic metal insert.
- Wall panels
- Beams and columns
- Stairs
- Facade panels
- Safe working load class
- Concrete strength at first lift
- Minimum edge distance
- Lifting angle and sling arrangement
Product photographs
Product form, interfaces and production context
The views below show the product itself together with relevant handling, installation or production interfaces.

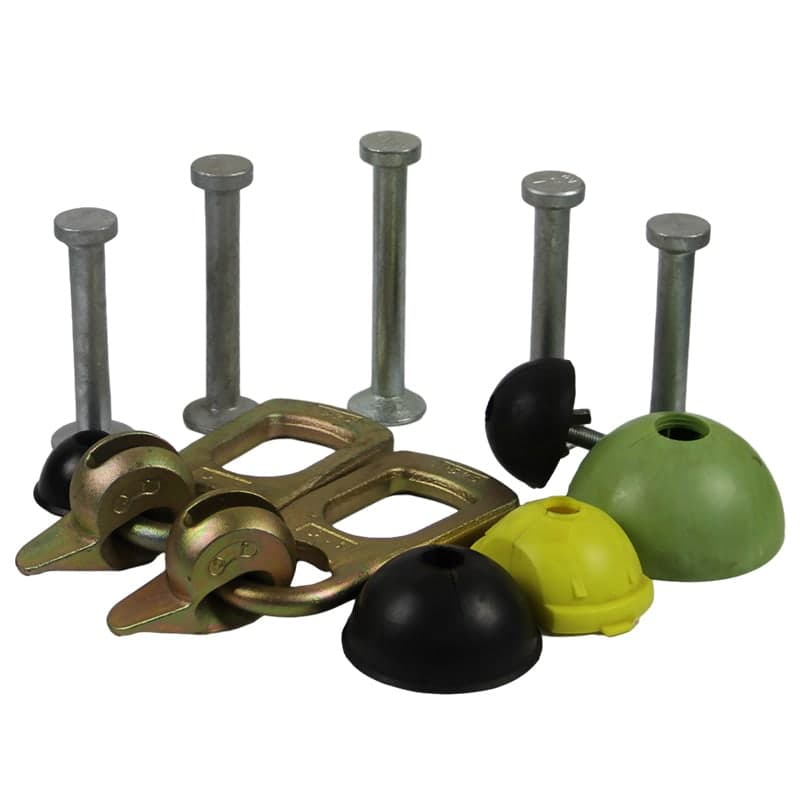

Primary product view
A cast-in steel anchor designed as part of the lifting system to transfer a precast element's handling load through a compatible clutch and crane connection.
Overall product view showing the form and principal interfaces.

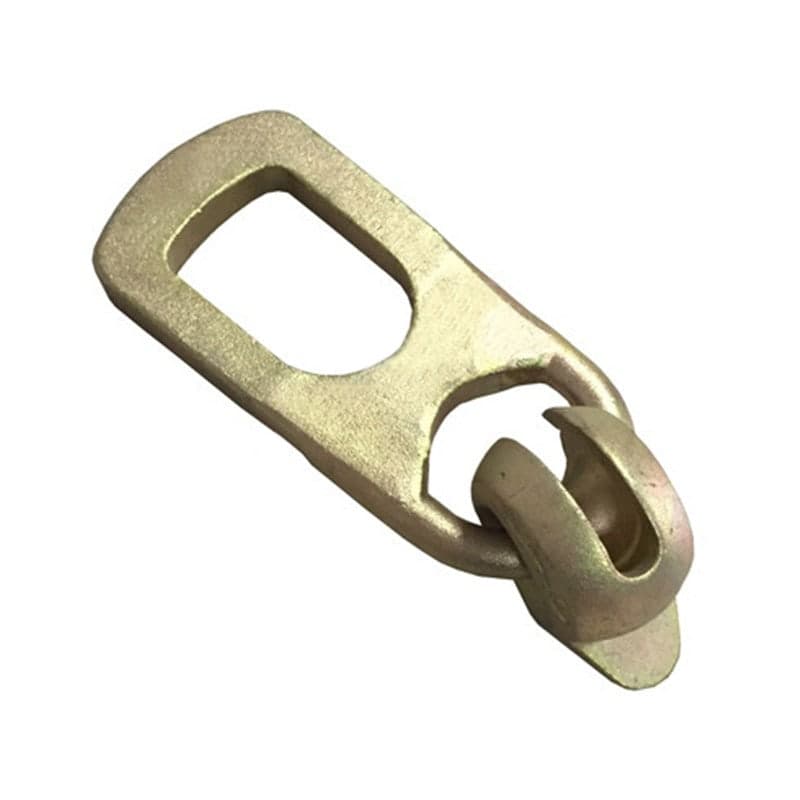

Compatible lifting clutch
The anchor and clutch should be treated as a system; mixed systems are a safety risk.
Use this image to check connection compatibility.
Crane handling interface
Lifting angle, hook height, sling arrangement and demolding direction affect anchor selection.
Use as a handling-flow reference. For precast lifting anchor, check this interface with adjacent equipment, handling sequence and inspection records.Process references
Use this article to connect precast lifting anchor with production variables, field evidence and interface checks.
Open process referencePRECAST.WORLDHow to Choose Lifting Anchors for Precast PanelsUse this article to connect precast lifting anchor with production variables, field evidence and interface checks.
Open process referencePRECAST.WORLDThreaded Insert manualUse this manual when precast lifting anchor depends on threaded insert selection, handling or inspection.
Open process referenceH-LiftGrade 80 precast lifting clutchManufacturer product reference for clutch geometry, lifting interface and handling-system compatibility.
Open process referenceTechnical references
Standards context for Precast Lifting Anchor
These references identify where a technical review often starts. They are not a declaration of compliance, product approval or a replacement for the adopted project code.
Common rules for precast concrete products
Common requirements for precast concrete product standards, including basic performance and conformity-assessment context.
Use it as a common precast reference only. A product-specific standard and the project's adopted national rules take precedence.View standard recordBuilding Code Requirements for Structural Concrete
Structural concrete requirements for design and detailing in jurisdictions that adopt ACI 318.
A design-code reference, not a product approval or a substitute for the governing project code and engineer's drawings.View standard recordField notes
Precast Lifting Anchor operating variables
Choose lifting anchors as a complete lifting system: anchor type, safe working load, concrete strength at lifting, edge distance, lifting angle and clutch compatibility must all match the element.
Parameters to verify
- Safe working load class
- Concrete strength at first lift
- Minimum edge distance
- Lifting angle and sling arrangement
Records and inputs
- Element drawing
- Element weight and center of gravity
- Concrete strength at lifting
- Lifting angle and crane method
Failure modes to watch
- Anchor and clutch are not from compatible systems.
- Safe working load is checked without sling angle.
- Early concrete strength is unknown.
Main types
- Spherical-head pin anchors
- Flat anchors
- Spread anchors
- Eye anchors
- Plate anchors for thin or special elements
Key specifications
- Safe working load class
- Concrete strength at first lift
- Minimum edge distance
- Lifting angle and sling arrangement
- Compatible clutch or ring clutch
- Steel grade, coating and traceability
Technical interface matrix
Read the product through application, geometry, production interface and acceptance evidence before comparing catalog data, drawings or technical offers.
| Area | Variables to check | Evidence normally needed | Interface risk |
|---|---|---|---|
| Application fit | Wall panels; Beams and columns; Stairs | Element drawing; Element weight and center of gravity | Anchor and clutch are not from compatible systems. |
| Type and geometry | Spherical-head pin anchors; Flat anchors; Spread anchors; Eye anchors | Element drawing; Element weight and center of gravity; Concrete strength at lifting | Safe working load is checked without sling angle. |
| Production interface | Start with the element weight, center of gravity and demolding direction.; Apply lifting angle and dynamic factors instead of comparing nominal load only.; Check concrete release strength because many failures happen before design strength is reached. | Concrete strength at lifting; Lifting angle and crane method; Required safety factor or local standard | Early concrete strength is unknown. |
| Inspection and acceptance | Minimum edge distance; Lifting angle and sling arrangement; Compatible clutch or ring clutch; Steel grade, coating and traceability | Lifting angle and crane method; Required safety factor or local standard; Clutch system already used in the factory; Anchor and clutch are not from compatible systems. | Anchor position conflicts with reinforcement or openings. |
Technical selection variables
- Start with the element weight, center of gravity and demolding direction.
- Apply lifting angle and dynamic factors instead of comparing nominal load only.
- Check concrete release strength because many failures happen before design strength is reached.
- Confirm the clutch system and recess former before approving the anchor.
- Use a lifting layout reviewed against the element drawing, not a generic anchor spacing.
Project interfaces and failure modes
- Selecting low-cost anchors without traceability or compatible clutches.
- Ignoring edge distance and thin panel cracking risk.
- Using the same anchor pattern for panels, beams and stairs with different lifting behavior.
- Lifting before concrete reaches the specified early strength.
Drawings and field data normally required
- Element drawing
- Element weight and center of gravity
- Concrete strength at lifting
- Lifting angle and crane method
- Required safety factor or local standard
- Clutch system already used in the factory
Inspection and interface points
- Anchor and clutch are not from compatible systems.
- Safe working load is checked without sling angle.
- Early concrete strength is unknown.
- Anchor position conflicts with reinforcement or openings.
- No batch certificate or inspection record is available.
Requirement checklists and evidence
Use these scope-control briefs when preparing technical assumptions, commissioning scope and acceptance evidence.
