Grout Sleeve for Precast Connection
Connection design and installation questions for grout sleeves in precast structures.
Technical summary
Grout sleeves are structural connection components. Successful use depends on sleeve selection, rebar alignment, grout quality and site inspection.
Field notes
Grout Sleeve for Precast Connection operating variables
Grout sleeves are structural connection components. Successful use depends on sleeve selection, rebar alignment, grout quality and site inspection.
Parameters to verify
- Confirm design code acceptance.
- Check bar diameter and grade.
- Plan installation tolerance and grout flow.
- Define inspection records.
Records and inputs
- Structural drawings
- Rebar grade
- Design standard
- Grout data
Failure modes to watch
- Alignment tolerance missed.
- Grout not filled fully.
- Inspection records weak.
Visual workflow
Grout sleeve as installed connection

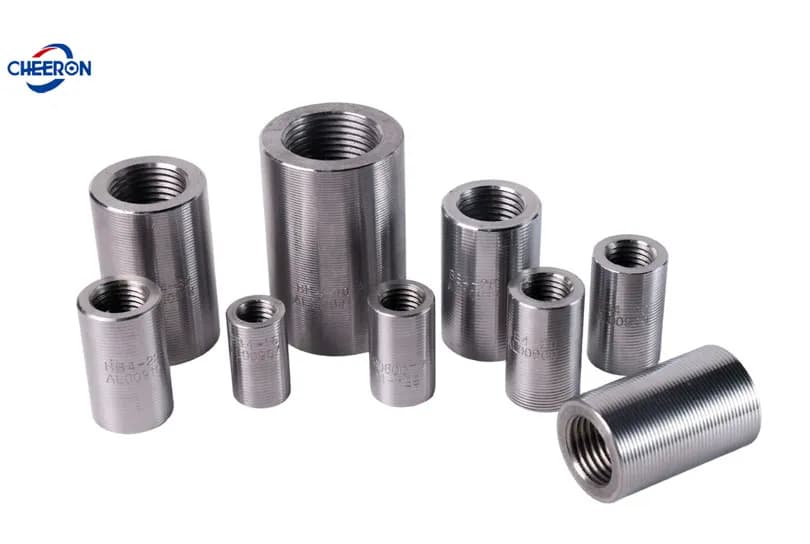

Grout sleeves should be read from bar tolerance through grout filling, venting, site sequence, curing and approval evidence. Supporting visual: rebar coupler as the related product or interface reference for this workflow.
Check real tolerance in factory and site elements.
Orientation and ports must remain accessible.
Temporary stability keeps bars and sleeves aligned.
Flow, venting and fill proof matter more than appearance.
Temperature and time control connection strength.
Approval relies on test, batch and inspection evidence.
Production context
Grout sleeves are structural connection components. Successful use depends on sleeve selection, rebar alignment, grout quality and site inspection.
Where this applies
- grout sleeve planning and comparison
- connection planning and comparison
- rebar planning and comparison
Engineering variables
- Confirm design code acceptance.
- Check bar diameter and grade.
- Plan installation tolerance and grout flow.
- Define inspection records.
System interfaces
- Compare test reports for the required bar grades.
- Ask about compatible grout and training.
- Review installation details with structural engineers.
Production evidence checklist
| Production variable | Why it matters in production | Records or evidence to inspect | Interface risk |
|---|---|---|---|
| Bar alignment tolerance | Defines whether the sleeve can accept real factory and site bar position variation. | Element drawing, bar diameter, tolerance zone, mock-up result and installation photos. | A sleeve system can pass lab testing but fail site installation if alignment tolerance is unrealistic. |
| Grout material and fill proof | Controls bond, strength, void risk, flowability and inspection confidence. | Grout datasheet, flow test, strength record, port layout, vent evidence and fill procedure. | The connection is not proven if grout filling cannot be verified. |
| Port and access layout | Sets grouting direction, venting, operator access, inspection points and repair method. | Sleeve orientation, formwork detail, access photos, port position and sequencing plan. | Ports hidden by geometry or reinforcement create installation risk. |
| Installation sequence | Links factory casting, site erection, temporary stability, grouting and curing time. | Erection method, brace plan, grout timing, temperature and release/inspection hold points. | A correct sleeve can fail if grouting is rushed, cold or hard to access. |
| Test and approval basis | Connects product certificate, local code acceptance, mock-up testing and project records. | Test report, approval letter, batch certificate, mock-up result and inspection checklist. | Structural connections need accepted evidence, not only supplier catalogue data. |
