Manhole Mold

Steel formwork for precast manhole bases, risers, cones and chambers, controlling diameter, wall thickness, openings, benching and joint interfaces.

Manhole Mold should be selected around diameter range, height range, opening method. Confirm use conditions, records and supplier data before comparing options.

manholemoldinfrastructure

CategoryMolds

Used inSewer networks, Stormwater systems

Main typesBase molds, Riser molds

Key specsDiameter range, Height range

Ask technical desk Product photographs

What it is

Manhole molds need flexible opening details, reliable joint forming and safe handling because project dimensions vary while joint quality must stay repeatable.

Where it is used

Sewer networks
Stormwater systems
Utility access structures
Municipal precast plants

Specification focus

Diameter range
Height range
Opening method
Joint profile

Product photographs

Product form, interfaces and production context

The views below show the product itself together with relevant handling, installation or production interfaces.

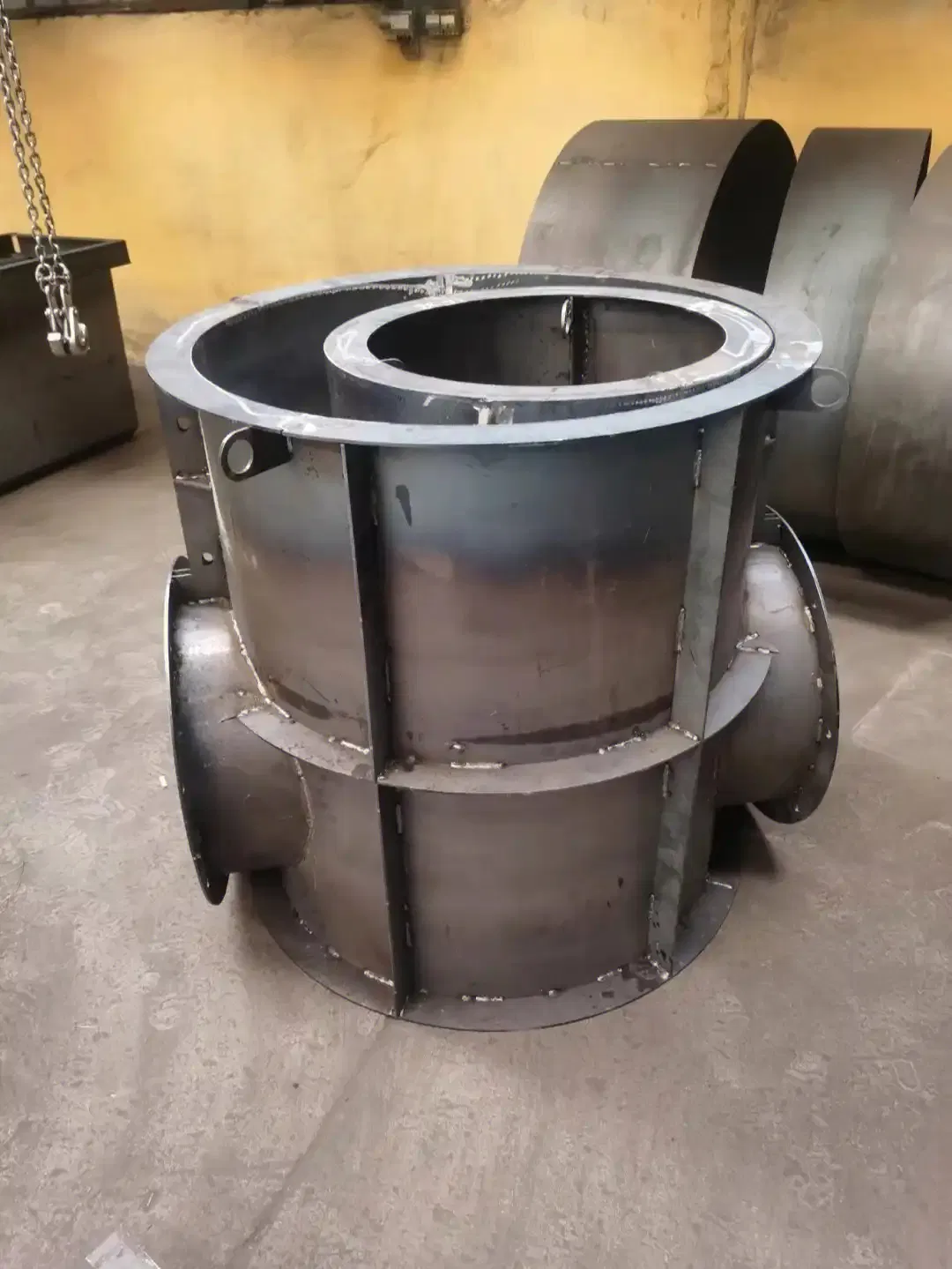

Primary product view

Steel formwork for precast manhole bases, risers, cones and chambers, controlling diameter, wall thickness, openings, benching and joint interfaces.

Overall product view showing the form and principal interfaces.

Concrete pipe mold interface

Manhole openings and pipe joints must match the pipe standard used in the same project.

Use as an adjacent infrastructure mold reference. For manhole mold, check this interface with adjacent equipment, handling sequence and inspection records.

Repair and surface evidence

Manhole and pipe plants need accepted repair procedures for edges, joints and handling chips.

Use with acceptance and defect records.

Process references

PRECAST.WORLDManhole Production Equipment Guide

Use this article to connect manhole mold with production variables, field evidence and interface checks.

Open process reference PRECAST.WORLDHow to Prevent Honeycombs in Precast Concrete

Use this article to connect manhole mold with production variables, field evidence and interface checks.

Open process reference PRECAST.WORLDConcrete Pipe Gasket manual

Use this manual when manhole mold depends on concrete pipe gasket selection, handling or inspection.

Open process reference Apollo Afinitas TechnologiesConcrete pipe machines and production

Official joint-venture manufacturer reference for concrete pipe, manhole, box-culvert, mold, cage-welding and curing equipment scope.

Open process reference Apollo Afinitas TechnologiesCAP concrete pipe making machines

Specific manufacturer reference for vertical vibration, reinforced and non-reinforced pipes, jacking pipes, box culverts, U-drains, manhole risers and station options.

Open process reference

Technical references

Standards context for Manhole Mold

These references identify where a technical review often starts. They are not a declaration of compliance, product approval or a replacement for the adopted project code.

NENEN 13369:2023

Common rules for precast concrete products

Common requirements for precast concrete product standards, including basic performance and conformity-assessment context.

Use it as a common precast reference only. A product-specific standard and the project's adopted national rules take precedence.View standard record

ASTM InternationalASTM C478

Precast Reinforced Concrete Manhole Sections

Precast reinforced concrete manhole sections and associated performance requirements.

A manhole-section reference only; municipal details, loading, jointing and local approvals remain project-specific.View standard record

ASTM InternationalASTM C443-21

Joints for Concrete Pipe and Manholes, Using Rubber Gaskets

Rubber-gasket joints for concrete pipe, manholes and precast box sections.

Check the edition named in the project documents and confirm gasket geometry, leakage testing and installation method.View standard record

Field notes

Manhole Mold operating variables

Manhole Mold should be selected around diameter range, height range, opening method. Confirm use conditions, records and supplier data before comparing options.

Parameters to verify

Diameter range
Height range
Opening method
Joint profile

Records and inputs

Manhole drawings
Diameter and height range
Pipe opening details
Joint standard

Failure modes to watch

Using fixed molds for too many variants.
Weak opening tolerance.
Ignoring joint and gasket compatibility.

Main types

Base molds
Riser molds
Cone molds
Adjustable opening molds
Wet-cast and dry-cast systems

Key specifications

Diameter range
Height range
Opening method
Joint profile
Vibration access
Lifting fixtures

Technical interface matrix

Read the product through application, geometry, production interface and acceptance evidence before comparing catalog data, drawings or technical offers.

Area	Variables to check	Evidence normally needed	Interface risk
Application fit	Sewer networks; Stormwater systems; Utility access structures	Manhole drawings; Diameter and height range	Using fixed molds for too many variants.
Type and geometry	Base molds; Riser molds; Cone molds; Adjustable opening molds	Manhole drawings; Diameter and height range; Pipe opening details	Weak opening tolerance.
Production interface	Map common municipal standards.; Check how pipe openings are formed.; Review insert and step placement.	Pipe opening details; Joint standard; Output target	Ignoring joint and gasket compatibility.
Inspection and acceptance	Opening method; Joint profile; Vibration access; Lifting fixtures	Joint standard; Output target; Using fixed molds for too many variants.; Weak opening tolerance.	Using fixed molds for too many variants.

Technical selection variables

Map common municipal standards.
Check how pipe openings are formed.
Review insert and step placement.
Plan repair and edge protection.

Project interfaces and failure modes

Using fixed molds for too many variants.
Weak opening tolerance.
Ignoring joint and gasket compatibility.

Drawings and field data normally required

Manhole drawings
Diameter and height range
Pipe opening details
Joint standard
Output target

Inspection and interface points

Using fixed molds for too many variants.
Weak opening tolerance.
Ignoring joint and gasket compatibility.

Requirement checklists and evidence

Use these scope-control briefs when preparing technical assumptions, commissioning scope and acceptance evidence.

Concrete pipe and manhole production requirement checklist Use checklist
