Battery Mold
Multi-cell vertical steel formwork that casts repeated wall panels between parallel partitions, concentrating panel output and heating capacity in a compact floor area.
Battery molds suit standardized vertical wall panel production where floor space is tight and both faces need good finish; they are weaker for highly variable panel geometry.
A battery mold casts wall panels vertically between heated or unheated steel partitions. It is efficient for repeated panel production when panel geometry is stable.
- Wall panels
- Sandwich panels
- Residential building components
- High-volume panel factories
- Number of cells
- Panel thickness range
- Heating or curing method
- Hydraulic opening system
Product photographs
Product form, interfaces and production context
The views below show the product itself together with relevant handling, installation or production interfaces.

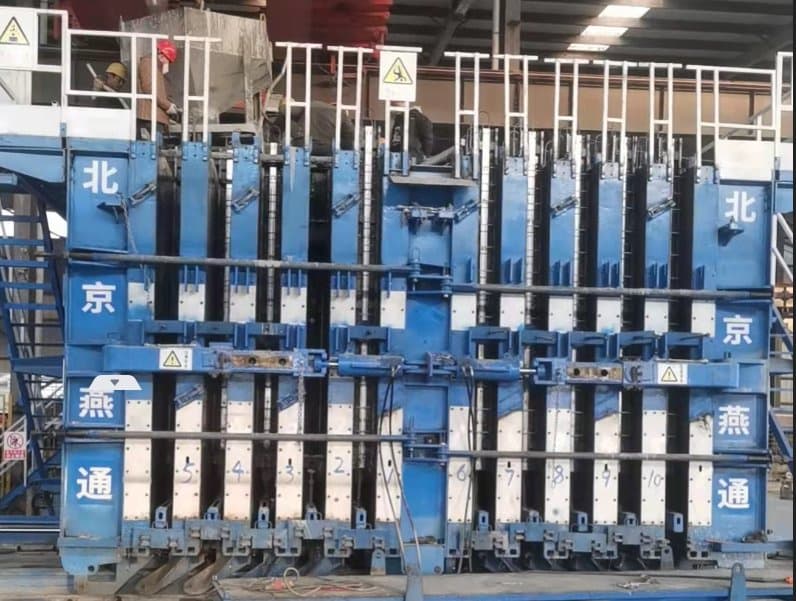

Primary product view
Multi-cell vertical steel formwork that casts repeated wall panels between parallel partitions, concentrating panel output and heating capacity in a compact floor area.
Overall product view showing the form and principal interfaces.
Wall panel product output
Battery molds should be judged against repeated wall panel geometry, insert access and surface finish expectations.
Use as the finished-product interface reference.
Crane access and demolding
Vertical casting depends on safe opening, lifting route, hook height and panel storage after demolding.
Use as the handling interface reference. For battery mold, check this interface with adjacent equipment, handling sequence and inspection records.Process references
Use this comparison to connect floor-space productivity, product repetition, crane workflow and flexibility.
Open process referencePRECAST.WORLDWall panel line product manualUse this manual when battery molds are part of a wider wall panel production concept.
Open process referenceElematicChoosing a wall panel production lineManufacturer process note for wall-line scope, product repetition, station sequence and production constraints.
Open process referenceElematicWall production line familiesSpecific manufacturer overview of circulation lines, battery molds, tilting tables, staircase molds and beam/column mold interfaces.
Open process referenceTechnical references
Standards context for Battery Mold
These references identify where a technical review often starts. They are not a declaration of compliance, product approval or a replacement for the adopted project code.
Common rules for precast concrete products
Common requirements for precast concrete product standards, including basic performance and conformity-assessment context.
Use it as a common precast reference only. A product-specific standard and the project's adopted national rules take precedence.View standard recordBuilding Code Requirements for Structural Concrete
Structural concrete requirements for design and detailing in jurisdictions that adopt ACI 318.
A design-code reference, not a product approval or a substitute for the governing project code and engineer's drawings.View standard recordField notes
Battery Mold operating variables
Battery molds suit standardized vertical wall panel production where floor space is tight and both faces need good finish; they are weaker for highly variable panel geometry.
Parameters to verify
- Number of cells
- Panel thickness range
- Heating or curing method
- Hydraulic opening system
Records and inputs
- Panel schedule
- Thickness and height range
- Finish requirements on both sides
- Daily output target
Failure modes to watch
- Product mix is not standardized enough.
- Hydraulic maintenance skill is missing.
- Panel inserts are hard to position.
Main types
- Fixed battery molds
- Hydraulic battery molds
- Heated battery molds
- Insulated panel battery molds
Key specifications
- Number of cells
- Panel thickness range
- Heating or curing method
- Hydraulic opening system
- Insert and reinforcement access
- Cleaning access between partitions
Technical interface matrix
Read the product through application, geometry, production interface and acceptance evidence before comparing catalog data, drawings or technical offers.
| Area | Variables to check | Evidence normally needed | Interface risk |
|---|---|---|---|
| Application fit | Wall panels; Sandwich panels; Residential building components | Panel schedule; Thickness and height range | Product mix is not standardized enough. |
| Type and geometry | Fixed battery molds; Hydraulic battery molds; Heated battery molds; Insulated panel battery molds | Panel schedule; Thickness and height range; Finish requirements on both sides | Hydraulic maintenance skill is missing. |
| Production interface | Check panel repetition first.; Compare floor-space saving against higher initial investment.; Confirm crane access and demolding sequence. | Finish requirements on both sides; Daily output target; Crane capacity | Panel inserts are hard to position. |
| Inspection and acceptance | Heating or curing method; Hydraulic opening system; Insert and reinforcement access; Cleaning access between partitions | Daily output target; Crane capacity; Heating preference; Product mix is not standardized enough. | Curing method does not support the target cycle. |
Technical selection variables
- Check panel repetition first.
- Compare floor-space saving against higher initial investment.
- Confirm crane access and demolding sequence.
- Review maintenance access to hydraulics, seals and vibration units.
Compare vertical and horizontal wall casting
Battery molds and tilting tables solve different production problems. Choosing between them should start with repetition, inserts, finish and crane workflow.
| Decision factor | Battery mold | Tilting table | Evidence to inspect |
|---|---|---|---|
| Best fit | Repeated panels, good two-face finish, limited floor area | Variable panels, more openings, easier reinforcement access | Repeated panel count, finish requirements and floor-area constraints. |
| Operator access | Harder insert placement and cleaning between cells | Easier layout, embeds and inspection on open tables | Insert-placement workflow against real project drawings. |
| Maintenance | Hydraulics, partitions, heating and seals | Table surface, hydraulic tilt system, vibrators and shuttering | Critical components that stop production when they fail. |
Project interfaces and failure modes
- Choosing battery molds for one-off custom panels.
- Underestimating cleaning between cells.
- Forgetting insert placement difficulty in vertical casting.
Drawings and field data normally required
- Panel schedule
- Thickness and height range
- Finish requirements on both sides
- Daily output target
- Crane capacity
- Heating preference
Inspection and interface points
- Product mix is not standardized enough.
- Hydraulic maintenance skill is missing.
- Panel inserts are hard to position.
- Curing method does not support the target cycle.
- Factory crane access is too limited.
FAQ
What should be checked before comparing battery molds?
Confirm the element type, production capacity, local standard, installation condition and maintenance capability first. Price comparison is weak when these basics are unclear.
Can PRECAST.WORLD organize technical evidence for this topic?
Yes. The goal is to organize production variables, drawings, photos, records and interface questions so the next technical discussion starts from evidence instead of assumptions.
Ask the technical desk about battery mold
Send product type, capacity target, standards, drawings, photos or quality issues. PRECAST.WORLD will turn them into clearer technical notes for the next discussion.
