Precast Steel Mold
Rigid reusable steel formwork that fixes product geometry, tolerance, surface face, reinforcement clearance and demolding sequence over repeated production cycles.
A steel mold should be reviewed as a production tool: stiffness, welding accuracy, demolding sequence, surface treatment and transport plan matter more than steel weight alone.
A precast steel mold is a rigid reusable form designed around product geometry, demolding sequence, tolerances and vibration method.
- Wall panels
- Beams
- Columns
- Manholes
- Mold plate thickness
- Stiffener layout
- Welding and machining tolerance
- Demolding slope and opening direction
Product photographs
Product form, interfaces and production context
The views below show the product itself together with relevant handling, installation or production interfaces.
Primary product view
Rigid reusable steel formwork that fixes product geometry, tolerance, surface face, reinforcement clearance and demolding sequence over repeated production cycles.

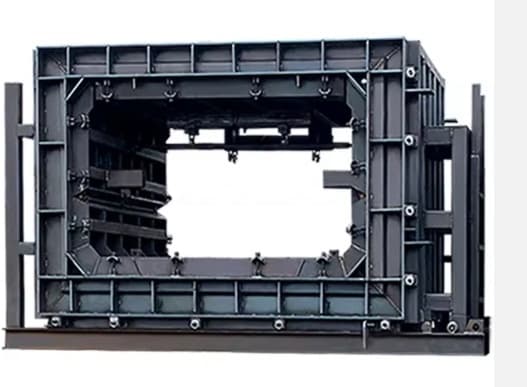

Overall product view showing the form and principal interfaces.
Tilting table interface
Many wall-panel molds depend on table flatness, hydraulic tilt, compatible shuttering and safe demolding.
Use this as an adjacent-process reference. For precast steel mold, check this interface with adjacent equipment, handling sequence and inspection records.
Bridge girder mold scale

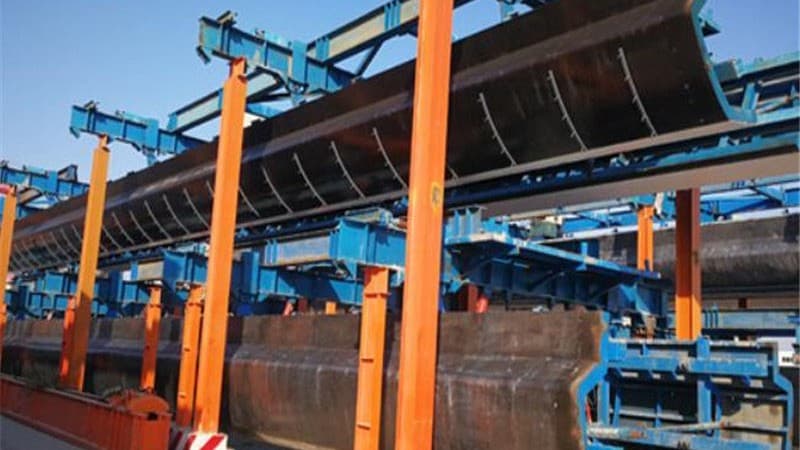

Large infrastructure molds add stiffness, transport split, reassembly and camber-control questions.
Use when comparing heavy custom molds.Process references
Use this article to connect precast steel mold with production variables, field evidence and interface checks.
Open process referencePRECAST.WORLDCustom Precast Mold Technical RisksUse this article to connect precast steel mold with production variables, field evidence and interface checks.
Open process referencePRECAST.WORLDBattery Mold manualUse this manual when precast steel mold depends on battery mold selection, handling or inspection.
Open process referenceElematicChoosing a wall panel production lineManufacturer process note for wall-line scope, product repetition, station sequence and production constraints.
Open process referenceElematicWall production line familiesSpecific manufacturer overview of circulation lines, battery molds, tilting tables, staircase molds and beam/column mold interfaces.
Open process referenceTechnical references
Standards context for Precast Steel Mold
These references identify where a technical review often starts. They are not a declaration of compliance, product approval or a replacement for the adopted project code.
Common rules for precast concrete products
Common requirements for precast concrete product standards, including basic performance and conformity-assessment context.
Use it as a common precast reference only. A product-specific standard and the project's adopted national rules take precedence.View standard recordBuilding Code Requirements for Structural Concrete
Structural concrete requirements for design and detailing in jurisdictions that adopt ACI 318.
A design-code reference, not a product approval or a substitute for the governing project code and engineer's drawings.View standard recordField notes
Precast Steel Mold operating variables
A steel mold should be reviewed as a production tool: stiffness, welding accuracy, demolding sequence, surface treatment and transport plan matter more than steel weight alone.
Parameters to verify
- Mold plate thickness
- Stiffener layout
- Welding and machining tolerance
- Demolding slope and opening direction
Records and inputs
- Final element drawings
- Tolerance and finish requirement
- Target cycles
- Vibration method
Failure modes to watch
- Late drawing changes after fabrication starts.
- Mold cannot demold without damaging corners.
- Weld distortion changes dimensions.
Main types
- Fixed molds
- Adjustable molds
- Hydraulic molds
- Vibrating molds
- Custom modular molds
Key specifications
- Mold plate thickness
- Stiffener layout
- Welding and machining tolerance
- Demolding slope and opening direction
- Surface treatment
- Trial assembly and transport split
Technical interface matrix
Read the product through application, geometry, production interface and acceptance evidence before comparing catalog data, drawings or technical offers.
| Area | Variables to check | Evidence normally needed | Interface risk |
|---|---|---|---|
| Application fit | Wall panels; Beams; Columns | Final element drawings; Tolerance and finish requirement | Late drawing changes after fabrication starts. |
| Type and geometry | Fixed molds; Adjustable molds; Hydraulic molds; Vibrating molds | Final element drawings; Tolerance and finish requirement; Target cycles | Mold cannot demold without damaging corners. |
| Production interface | Freeze element drawings before fabrication.; Review demolding and lifting points in the mold design.; Check how tolerances are measured at trial assembly. | Target cycles; Vibration method; Transport limits | Weld distortion changes dimensions. |
| Inspection and acceptance | Welding and machining tolerance; Demolding slope and opening direction; Surface treatment; Trial assembly and transport split | Vibration method; Transport limits; On-site assembly responsibility; Late drawing changes after fabrication starts. | Surface treatment does not match finish requirement. |
Technical selection variables
- Freeze element drawings before fabrication.
- Review demolding and lifting points in the mold design.
- Check how tolerances are measured at trial assembly.
- Confirm packaging, transport supports and reassembly method.
Compare steel mold proposals
A steel mold is not only a welded structure. It is a production tool that affects cycle time, tolerance, demolding, repair work and transport setup.
| Decision factor | Low-cost fabrication offer | Production-tool proposal | Evidence to inspect |
|---|---|---|---|
| Drawing review | Often based on element outline and steel weight | Includes demolding, inserts, tolerances and trial assembly | Mold drawings, insert details and demolding direction before fabrication starts. |
| Repeatability | May deform under vibration or repeated handling | Stiffness and wear points are designed around cycles | Stiffener layout and inspection points, not only plate thickness. |
| Delivery risk | Transport split and reassembly may be vague | Shipping supports and reassembly tolerances are specified | Transport split, shipping supports and reassembly tolerance control. |
Project interfaces and failure modes
- Approving mold drawings without checking embedded parts.
- Reducing stiffeners until the mold deforms under vibration.
- Ignoring transport deformation risk.
Drawings and field data normally required
- Final element drawings
- Tolerance and finish requirement
- Target cycles
- Vibration method
- Transport limits
- On-site assembly responsibility
Inspection and interface points
- Late drawing changes after fabrication starts.
- Mold cannot demold without damaging corners.
- Weld distortion changes dimensions.
- Surface treatment does not match finish requirement.
- Transport split is not checked for reassembly accuracy.
Requirement checklists and evidence
Use these scope-control briefs when preparing technical assumptions, commissioning scope and acceptance evidence.
FAQ
What should be checked before comparing precast steel molds?
Confirm the element type, production capacity, local standard, installation condition and maintenance capability first. Price comparison is weak when these basics are unclear.
Can PRECAST.WORLD organize technical evidence for this topic?
Yes. The goal is to organize production variables, drawings, photos, records and interface questions so the next technical discussion starts from evidence instead of assumptions.
Ask the technical desk about precast steel mold
Send product type, capacity target, standards, drawings, photos or quality issues. PRECAST.WORLD will turn them into clearer technical notes for the next discussion.
