Tilting Table

A horizontal casting table with a controlled tilting function that supports panel casting, demolding and first lift while maintaining the required table flatness.

Tilting tables are flexible for wall panels and facade elements; table flatness, hydraulic safety, vibration choice and compatible shuttering decide daily quality.

wall paneltabledemolding

CategoryEquipment

Used inSolid wall panels, Sandwich panels

Main typesHydraulic tilting tables, Fixed casting tables

Key specsTable size and flatness, Tilt angle and hydraulic capacity

Ask technical desk Product photographs

What it is

A tilting table supports horizontal casting and then raises the finished element to an angle suitable for lifting. It is common in wall panel production.

Where it is used

Solid wall panels
Sandwich panels
Facade panels
Architectural concrete

Specification focus

Table size and flatness
Tilt angle and hydraulic capacity
Safety locks
Heating option

Product photographs

Product form, interfaces and production context

The views below show the product itself together with relevant handling, installation or production interfaces.

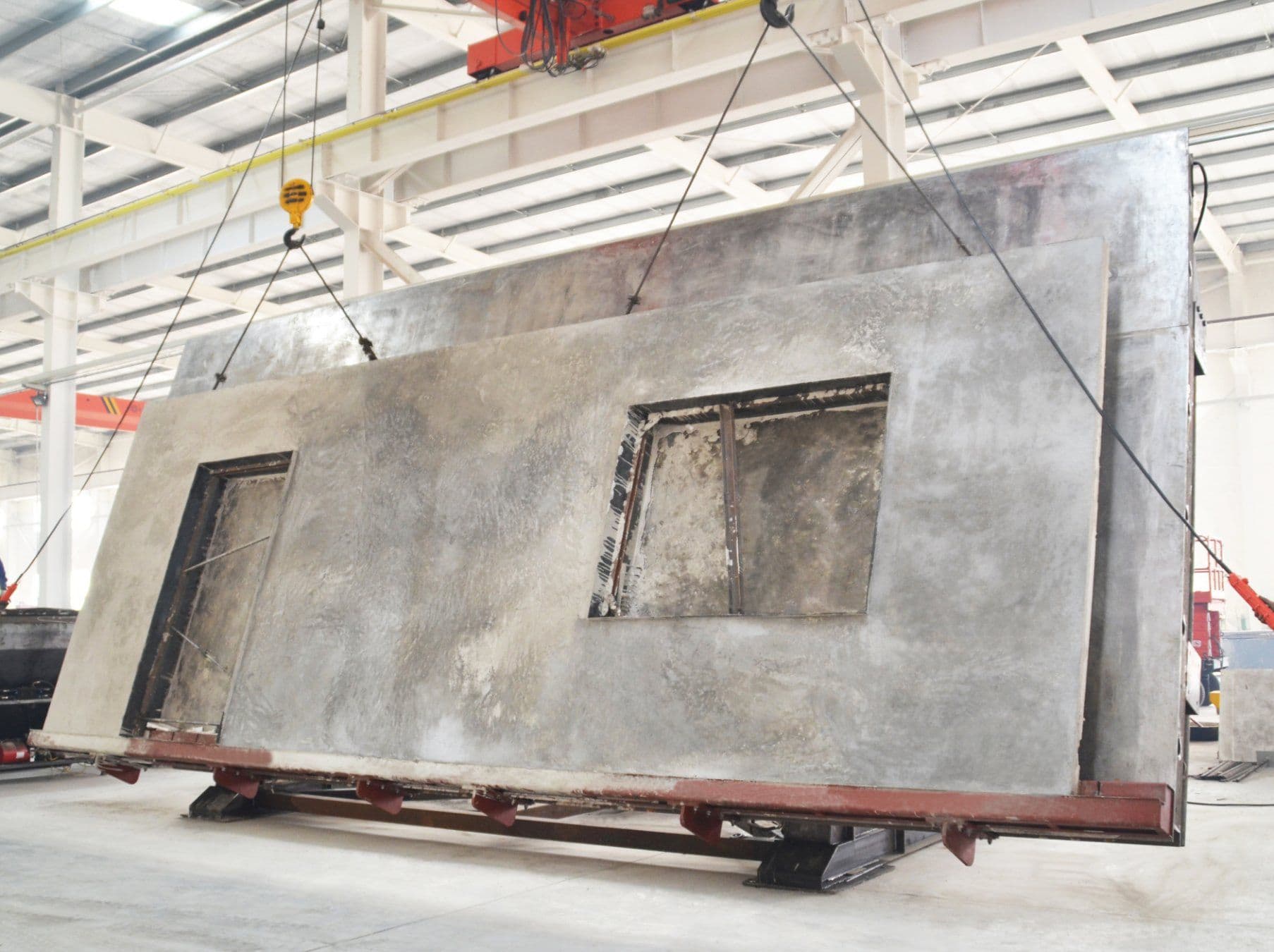

Primary product view

A horizontal casting table with a controlled tilting function that supports panel casting, demolding and first lift while maintaining the required table flatness.

Overall product view showing the form and principal interfaces.

Magnetic shuttering used on a tilting table for wall panel production

Magnetic shuttering on table

Magnetic shuttering, inserts and openings decide how flexible a tilting-table plant can be.

Use as the table tooling interface reference.

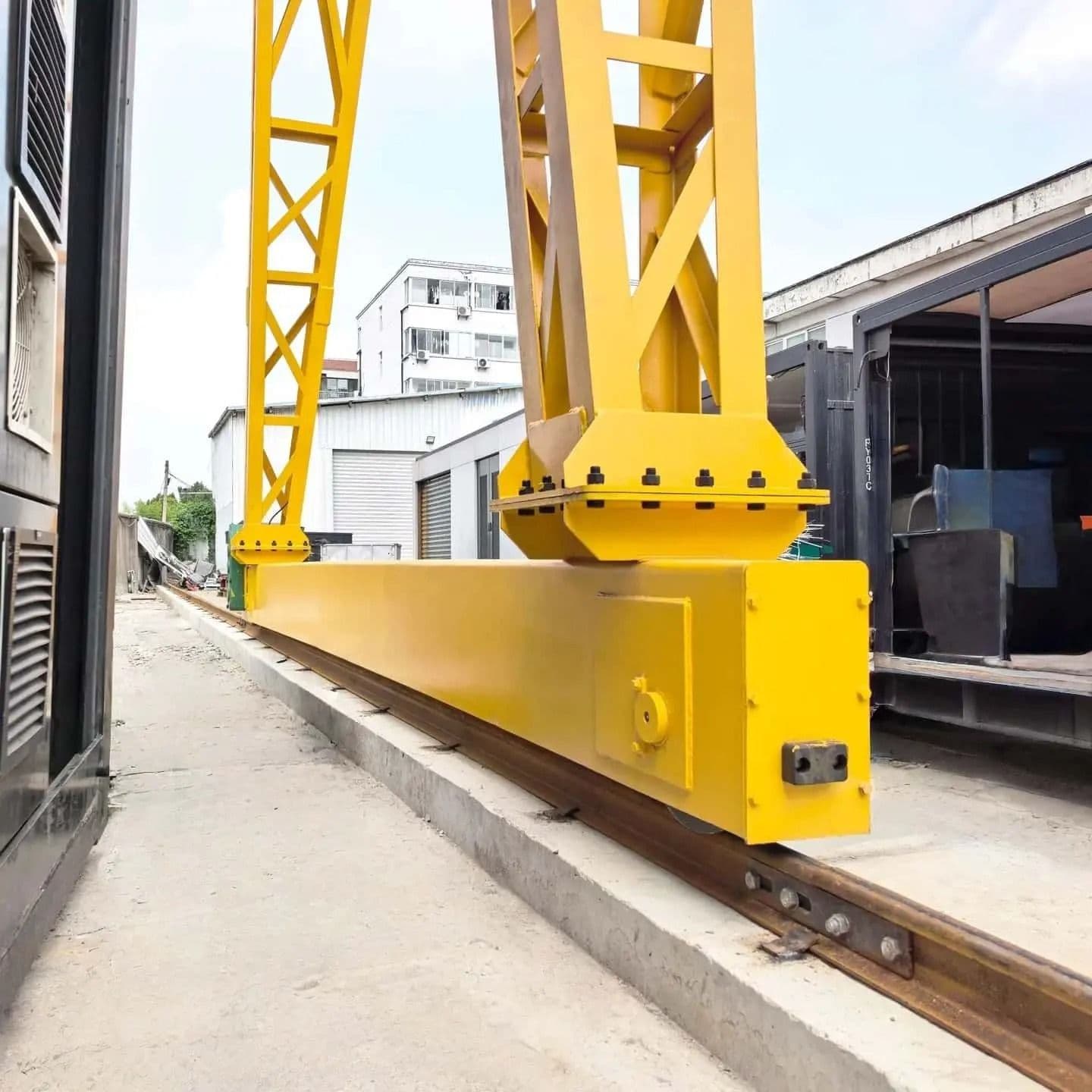

Crane lifting interface

After tilting, the plant still needs hook height, slings, lifting anchors and yard route to remove panels safely.

Use as the handling interface reference. For tilting table, check this interface with adjacent equipment, handling sequence and inspection records.

Process references

PRECAST.WORLDPrecast steel mold product manual

Use the product manual to read stiffness, surface, demolding, transport and trial assembly questions.

Open process reference PRECAST.WORLDTilting table interface

Use this reference when mold performance depends on table flatness, tilt and demolding workflow.

Open process reference PRECAST.WORLDPrecast concrete vibrator manual

Use this reference when mold stiffness, concrete pressure and vibration method must be checked together.

Open process reference ElematicChoosing a wall panel production line

Manufacturer process note for wall-line scope, product repetition, station sequence and production constraints.

Open process reference ElematicWall production line families

Specific manufacturer overview of circulation lines, battery molds, tilting tables, staircase molds and beam/column mold interfaces.

Open process reference

Technical references

Standards context for Tilting Table

These references identify where a technical review often starts. They are not a declaration of compliance, product approval or a replacement for the adopted project code.

NENEN 13369:2023

Common rules for precast concrete products

Common requirements for precast concrete product standards, including basic performance and conformity-assessment context.

Use it as a common precast reference only. A product-specific standard and the project's adopted national rules take precedence.View standard record

American Concrete InstituteACI CODE-318-19(22)

Building Code Requirements for Structural Concrete

Structural concrete requirements for design and detailing in jurisdictions that adopt ACI 318.

A design-code reference, not a product approval or a substitute for the governing project code and engineer's drawings.View standard record

Field notes

Tilting Table operating variables

Tilting tables are flexible for wall panels and facade elements; table flatness, hydraulic safety, vibration choice and compatible shuttering decide daily quality.

Parameters to verify

Table size and flatness
Tilt angle and hydraulic capacity
Safety locks
Heating option

Records and inputs

Panel size range
Maximum panel weight
Required tilt angle
Heating and vibration needs

Failure modes to watch

Hydraulic system lacks safe locking.
Table flatness causes panel tolerance issues.
Shuttering system is not compatible.

Main types

Hydraulic tilting tables
Fixed casting tables
Heated tables
Circulation pallets

Key specifications

Table size and flatness
Tilt angle and hydraulic capacity
Safety locks
Heating option
Vibration option
Compatible magnetic shuttering

Technical interface matrix

Read the product through application, geometry, production interface and acceptance evidence before comparing catalog data, drawings or technical offers.

Area	Variables to check	Evidence normally needed	Interface risk
Application fit	Solid wall panels; Sandwich panels; Facade panels	Panel size range; Maximum panel weight	Hydraulic system lacks safe locking.
Type and geometry	Hydraulic tilting tables; Fixed casting tables; Heated tables; Circulation pallets	Panel size range; Maximum panel weight; Required tilt angle	Table flatness causes panel tolerance issues.
Production interface	Size tables around common panel dimensions, not rare maximums.; Check hydraulic safety locks and maintenance access.; Match vibration to panel thickness and finish.	Required tilt angle; Heating and vibration needs; Crane and lifting method	Shuttering system is not compatible.
Inspection and acceptance	Safety locks; Heating option; Vibration option; Compatible magnetic shuttering	Heating and vibration needs; Crane and lifting method; Hydraulic system lacks safe locking.; Table flatness causes panel tolerance issues.	Rare large panels drive unnecessary cost.

Technical selection variables

Size tables around common panel dimensions, not rare maximums.
Check hydraulic safety locks and maintenance access.
Match vibration to panel thickness and finish.
Compare flexibility against battery mold productivity.

Project interfaces and failure modes

Oversizing every table.
Ignoring table surface grinding quality.
Selecting tables without a complete demolding and lifting workflow.

Drawings and field data normally required

Panel size range
Maximum panel weight
Required tilt angle
Heating and vibration needs
Crane and lifting method

Inspection and interface points

Hydraulic system lacks safe locking.
Table flatness causes panel tolerance issues.
Shuttering system is not compatible.
Rare large panels drive unnecessary cost.
Demolding workflow is unsafe.

Requirement checklists and evidence

Use these scope-control briefs when preparing technical assumptions, commissioning scope and acceptance evidence.

Wall panel production line requirement checklist Use checklist

FAQ

What should be checked before comparing tilting tables?

Confirm the element type, production capacity, local standard, installation condition and maintenance capability first. Price comparison is weak when these basics are unclear.

Can PRECAST.WORLD organize technical evidence for this topic?

Yes. The goal is to organize production variables, drawings, photos, records and interface questions so the next technical discussion starts from evidence instead of assumptions.

Ask the technical desk about tilting table

Send product type, capacity target, standards, drawings, photos or quality issues. PRECAST.WORLD will turn them into clearer technical notes for the next discussion.
