A switchable magnetic box or adapter that holds side forms, blockouts and embedded-part fixtures to a steel casting surface without welding or drilling.
A formwork magnet is a switchable holding unit; magnetic shuttering is the wider system of magnets, rails and adapters used to build the mold boundary.
A formwork magnet provides a removable holding force on steel tables. It reduces welding and drilling on the table surface and supports faster mold changes.
- Steel casting tables
- Battery molds
- Blockouts
- Embedded part fixtures
- Rated holding force
- Switch mechanism
- Base surface area
- Adapter bolt pattern
Product photographs
Product form, interfaces and production context
The views below show the product itself together with relevant handling, installation or production interfaces.
Primary product view
A switchable magnetic box or adapter that holds side forms, blockouts and embedded-part fixtures to a steel casting surface without welding or drilling.

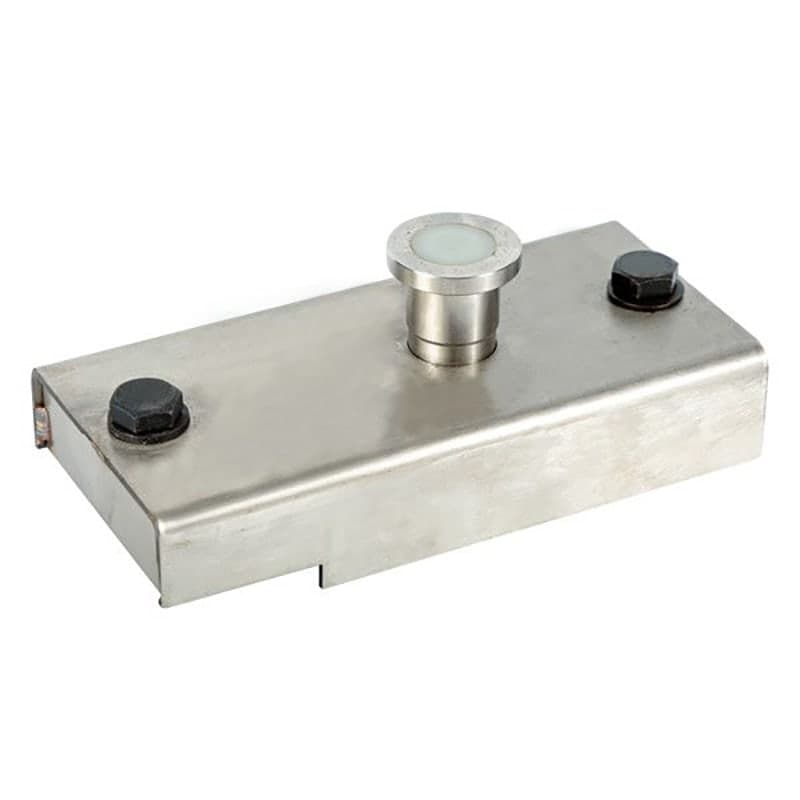

Overall product view showing the form and principal interfaces.
Magnetic shuttering system
A magnet box usually works with side forms, adapters and profiles; the system must be checked as a full tooling set.
Use as the adjacent magnetic shuttering reference.
Casting table interface
Holding force depends on steel table flatness, contact area and slurry control during daily casting.
Use as the table-condition interface reference.Process references
Use this product manual to check holding force, side-rail height, table condition and accessories.
Open process referencePRECAST.WORLDFormwork magnet interfaceUse this reference to separate magnet boxes from complete shuttering systems.
Open process referencePRECAST.WORLDTilting table interfaceUse this reference when magnetic shuttering performance depends on table flatness and demolding workflow.
Open process referenceElematicChoosing a wall panel production lineManufacturer process note for wall-line scope, product repetition, station sequence and production constraints.
Open process referenceElematicWall production line familiesSpecific manufacturer overview of circulation lines, battery molds, tilting tables, staircase molds and beam/column mold interfaces.
Open process referenceTechnical references
Standards context for Precast Formwork Magnet
These references identify where a technical review often starts. They are not a declaration of compliance, product approval or a replacement for the adopted project code.
Common rules for precast concrete products
Common requirements for precast concrete product standards, including basic performance and conformity-assessment context.
Use it as a common precast reference only. A product-specific standard and the project's adopted national rules take precedence.View standard recordBuilding Code Requirements for Structural Concrete
Structural concrete requirements for design and detailing in jurisdictions that adopt ACI 318.
A design-code reference, not a product approval or a substitute for the governing project code and engineer's drawings.View standard recordField notes
Precast Formwork Magnet operating variables
A formwork magnet is a switchable holding unit; magnetic shuttering is the wider system of magnets, rails and adapters used to build the mold boundary.
Parameters to verify
- Rated holding force
- Switch mechanism
- Base surface area
- Adapter bolt pattern
Records and inputs
- Target holding force
- Formwork profile drawing
- Table condition
- Concrete pressure estimate
Failure modes to watch
- Switch mechanism jams after slurry exposure.
- Adapter does not fit the side form.
- Holding force falls on rough tables.
Main types
- Push-button magnet boxes
- Lever magnets
- Adapter magnets
- Pipe and blockout magnets
Key specifications
- Rated holding force
- Switch mechanism
- Base surface area
- Adapter bolt pattern
- Release tool and service parts
Technical interface matrix
Read the product through application, geometry, production interface and acceptance evidence before comparing catalog data, drawings or technical offers.
| Area | Variables to check | Evidence normally needed | Interface risk |
|---|---|---|---|
| Application fit | Steel casting tables; Battery molds; Blockouts | Target holding force; Formwork profile drawing | Switch mechanism jams after slurry exposure. |
| Type and geometry | Push-button magnet boxes; Lever magnets; Adapter magnets; Pipe and blockout magnets | Target holding force; Formwork profile drawing; Table condition | Adapter does not fit the side form. |
| Production interface | Use stronger magnets for taller side forms and high-flow concrete.; Check the switch can be operated safely with gloves.; Match the adapter to the exact rail or blockout profile. | Table condition; Concrete pressure estimate; Preferred release tool | Holding force falls on rough tables. |
| Inspection and acceptance | Base surface area; Adapter bolt pattern; Release tool and service parts | Concrete pressure estimate; Preferred release tool; Switch mechanism jams after slurry exposure.; Adapter does not fit the side form. | Magnet boxes become unsafe to release by hand. |
Technical selection variables
- Use stronger magnets for taller side forms and high-flow concrete.
- Check the switch can be operated safely with gloves.
- Match the adapter to the exact rail or blockout profile.
- Plan cleaning and storage so the base remains flat.
Project interfaces and failure modes
- Comparing catalog holding force without table condition.
- Forgetting adapters.
- Letting concrete paste harden under the magnet base.
Drawings and field data normally required
- Target holding force
- Formwork profile drawing
- Table condition
- Concrete pressure estimate
- Preferred release tool
Inspection and interface points
- Switch mechanism jams after slurry exposure.
- Adapter does not fit the side form.
- Holding force falls on rough tables.
- Magnet boxes become unsafe to release by hand.
